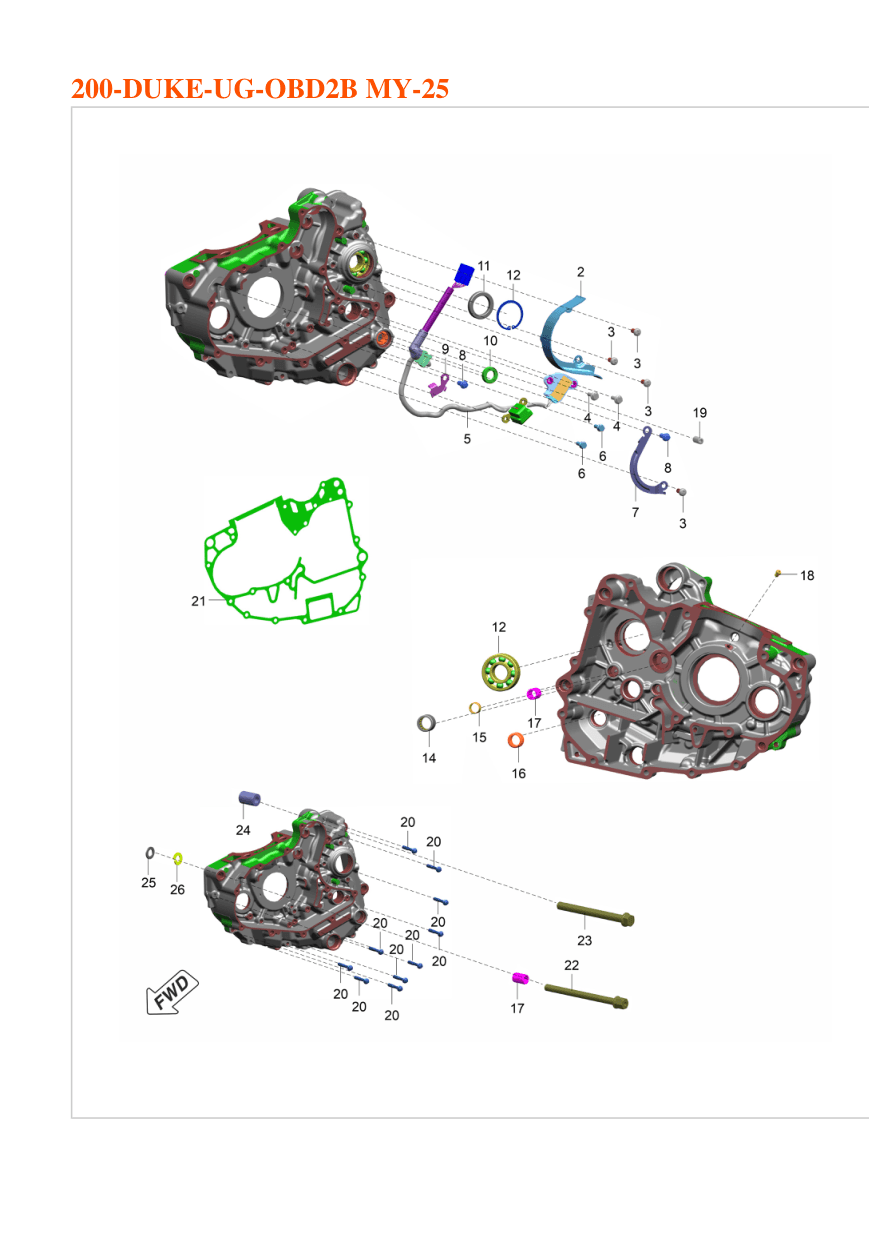

CRANKCASE LH
Genuine CRANKCASE LH spare parts, catalogued by part number for an exact fit.
125 parts available
Assly C' Case LH [Refer Kit List]
PF541029 · MY 2017, 2018
Assly C' Case LH [Refer Page No. 116]
36JF0027 · MY 2016 · ₹3,583
Crankcase LH
DK101385 · MY 2015
Crankcase LH
JM100012 · MY 2008 · ₹2,114
Crankcase LH [Refer Page No.105]
36PD0014 · MY 2015 · ₹4,009
Kit Assembly Crankcase LH [Refer Kit List]
36JF0211 · MY 2023 · ₹6,850
Kit Assly Crankcase LH [Refer Kit List]
36DK0193 · MY 2020, 2023 · ₹3,814
Kit Assly. Crankcase LH [Refer Page No. 107]
36JL0094 · MY 2017, 2018
Kit Crankcase LH [Refer Kit List]
36JF0132 · MY 2019 · ₹3,571
Ball Bearing
59200036 · MY 2016, 2017, 2018, 2019
Bolt Flanged
LAE00014 · MY 2017, 2018 · ₹2.24
Stud
59050002 · MY 2015, 2020, 2023 · ₹78
Stud - M10 (Bolt stud cyl.)
59050008 · MY 2008, 2020, 2023 · ₹78
Switch Complete
31201081 · MY 2008, 2016, 2017, 2018, 2019 · ₹50
‘O’ Ring
LJA00002 · MY 2023 · ₹4.8
Guide Starter Assembly
DH102200 · MY 2020, 2023 · ₹584
Guide starter assly
DK101094 · MY 2008, 2015 · ₹433
Oil Seal
39219019 · MY 2008, 2015, 2016, 2017, 2018, 2019, 2020, 2023 · ₹16
Pre Coated pan Screw
DH101381 · MY 2017, 2018 · ₹2.06
Seal - Oil
39171519 · MY 2016, 2017, 2018, 2019 · ₹14.4
Strainer Evacuation
JY571008 · MY 2023 · ₹53
Bearing - Needle Roller
39256220 · MY 2016, 2017, 2018, 2019, 2023 · ₹49
Bracket Harness Upper
JG541063 · MY 2017, 2018 · ₹13
Damper Crankshaft
DJ101705 · MY 2020, 2023 · ₹134
Oil Seal
39218819 · MY 2008, 2015 · ₹23.6
‘O’ Ring
LJA00006 · MY 2023 · ₹3.7
Bracket Harness Lower
JG541044 · MY 2017, 2018 · ₹4.1
Bush Bendix
JA541005 · MY 2016, 2017, 2018 · ₹30
Cap Strainer Evacuation
JY571009 · MY 2023 · ₹57
Screw Csk Cross M6 x 1
DH101379 · MY 2020, 2023 · ₹2.74
‘O’ Ring
59210006 · MY 2008, 2015 · ₹37
Bearing Ball (For Input shaft)
39260320 · MY 2008, 2015, 2020, 2023 · ₹108
Bolt M-5 x 16
39177304 · MY 2017, 2018 · ₹1.76
Damper
DK101097 · MY 2008, 2015 · ₹20
Oil Seal
39104319 · MY 2017, 2018, 2023 · ₹13.4
Bearing Ball (For Output shaft)
59200006 · MY 2008, 2015, 2017, 2018, 2020, 2023 · ₹152
C’ Sunk Head Screw
39075201 · MY 2008, 2015 · ₹1.76
Neutral Indicator Switch
JL351800 · MY 2017, 2018 · ₹192
Oil Seal
JY541058 · MY 2017, 2018, 2019, 2023 · ₹33
Oil Strainer Assly
JG571024 · MY 2016, 2017, 2018, 2019 · ₹44.2
Bearing ball balancer LH
59200029 · MY 2020, 2023 · ₹136
Circlip Internal
KEBA3715 · MY 2015, 2017, 2018, 2023 · ₹10.08
Gasket Neutral Switch
DH101784 · MY 2008, 2017, 2018, 2019 · ₹1.85
Neutral Switch AL Washer
DH101264 · MY 2016, 2018, 2019
‘O’ Ring Strainer
LJA00004 · MY 2016, 2017, 2018, 2019, 2023 · ₹2.4
Bracket Stopper Gear Starter
PF621402 · MY 2017, 2018 · ₹7
Cap Strainer
JA541021 · MY 2016, 2017, 2018, 2019 · ₹45
Chain Guard
JY541031 · MY 2023 · ₹81
Seal oil
DG101456 · MY 2017, 2018, 2020, 2023 · ₹27
Stopper Gear Starter-
JE621405 · MY 2016 · ₹8.6
Balancer LH Bearing
39218520 · MY 2008, 2015 · ₹162
Gasket Crankcase
JE541063 · MY 2019 · ₹106
Screw Pan Cross
LBB00007 · MY 2017, 2018, 2023 · ₹3.52
Screw Pan Head- M6
DH101380 · MY 2016, 2017, 2018
Bolt Flanged
59040038 · MY 2017, 2018, 2019
Breather pipe fitting
DH101203 · MY 2008, 2015, 2020, 2023 · ₹43
Mesh Oil Filter Assembly
JY571030 · MY 2017, 2018, 2023 · ₹53
Oil Seal (For Output shaft)
39218919 · MY 2015, 2019 · ₹24
Oil Seal (For Output shaft)
30101014 · MY 2008, 2015
Pin - Hollow Dowel
39099906 · MY 2016, 2017, 2018 · ₹3.2
Bearing Ball 6305
39256120 · MY 2019 · ₹234
Bolt - M6 X 55
LAE00024 · MY 2016 · ₹6.4
Needle Bearing [Drum]
JG541015 · MY 2017, 2018 · ₹80
Plug drain magnetic
DU101223 · MY 2020, 2023 · ₹27
Strainer Cap with ‘O’ Ring
JA541048 · MY 2017, 2018, 2023 · ₹46
Washer (Gasket For Drain Bolt)
DG101498 · MY 2020, 2023 · ₹3.2
Hollow Dowel Pin
39100006 · MY 2019 · ₹4
Plug (Drain Bolt)
DH101661 · MY 2008, 2015 · ₹28
Sensor Assembly Pick Up
JF351805 · MY 2023 · ₹487
Switch comp. (Neutral)
DK101380 · MY 2015, 2020, 2023 · ₹46
Bolt
DH101390 · MY 2020, 2023 · ₹17
Bolt flange
JN181033 · MY 2023 · ₹2.08
Hollow Dowel Pin
39218106 · MY 2008, 2015, 2019, 2020, 2023 · ₹11.4
Washer (Gasket For Drain Bolt)
31101106 · MY 2008, 2015
Bolt M5 x 13
AA101437 · MY 2020, 2023 · ₹3.32
Gasket Crankcase
JG541041 · MY 2017, 2018 · ₹217.8
Hallow dowel pin
39218006 · MY 2008, 2015, 2020, 2023 · ₹6.8
‘O’ ring Cap Strainer
59210023 · MY 2016, 2017, 2018, 2019 · ₹3.3
Bracket Harness
JY541081 · MY 2023 · ₹11.4
Damper
JE541048 · MY 2016 · ₹98
Damper
JE541038 · MY 2017, 2018 · ₹97
Kit Engine Gasket [Refer Page No. 107]
36JL0014 · MY 2017, 2018
‘O’ ring
KJAB1019 · MY 2015 · ₹1.7
‘O’ ring neutral switch
39101321 · MY 2015 · ₹2.15
Bolt
39167704 · MY 2008, 2015
Bolt Flange
JV541007 · MY 2016 · ₹4.1
Bolt M6 x 16 (Neutral Switch)
DH101385 · MY 2015, 2020, 2023
Chain Guard [D-52 dated 11/02/2013]
JG541058 · MY 2017, 2018 · ₹77
Plate Harness
JY541080 · MY 2023 · ₹3.6
Bolt
39230504 · MY 2008, 2015
Bracket Harness
JY541082 · MY 2023 · ₹5.8
Pan Head Screw [D-52 dated 11/02/2013]
KBBG0612 · MY 2017, 2018 · ₹1.9
Bearing Ball
LPB00003 · MY 2023 · ₹390
Bolt Flanged L-40 [C’case joining]
KAEQ0640 · MY 2017, 2018 · ₹5.8
Cable assly. (Battery to Earth)
DV201006 · MY 2008 · ₹176
Plain Washer
39244811 · MY 2008, 2015 · ₹7.1
Sensor Assembly Pick Up
DH102462 · MY 2020, 2023 · ₹213
Bearing Ball
LPB00002 · MY 2023 · ₹189
Bolt Flanged L-60 [C’case joining]
LAD00081 · MY 2017, 2018 · ₹9.6
Cable assly. (Battery to Earth)
DJ201021 · MY 2015
Bearing Plain [Model BS IV]
BF561020 · MY 2017, 2018 · ₹22
Bracket
JF541017 · MY 2023 · ₹5.7
Screw pan cross - M6
LBB00012 · MY 2023 · ₹2.6
Bolt Flange Small
KAEW0635 · MY 2023 · ₹6.2
Bolt Flanged
LAE00002 · MY 2023 · ₹10.7
Oil Rail
JY571029 · MY 2023 · ₹89
Nozzle
JF541016 · MY 2023 · ₹44
Bolt flange - M5
LAE00010 · MY 2023 · ₹2.6
(ES)
MY 2017
(ES)
MY 2018
13A 59 2100 23 O - Ring
MY 2023
14A LJ A000 04 ‘O’ Ring Strainer
MY 2017
14A LJ A000 04 ‘O’ Ring Strainer
MY 2018
14A LJ A000 04 ‘O’ Ring Strainer
MY 2017
14A LJ A000 04 ‘O’ Ring Strainer
MY 2018
Assly C' Case LH
PF541042 · MY 2017, 2018 · ₹2,800
Bearing - Ball clearance HN3 [For 110 CBS Model]
KPBF6203 · MY 2018 · ₹113
Bearing ball-ord clearance & HN3 [For ABS Model]
KPAF6004 · MY 2019 · ₹126
Bolt Flanged [Model BS IV]
DH101383 · MY 2018
Bracket Harness Upper [Model BS IV]
JU541018 · MY 2017, 2018 · ₹11.2
Bracket gear stopper [For 110 CBS Model]
JH541021 · MY 2018 · ₹8.8
Crankcase LH [For Black colour]
52PD1753 · MY 2023
Kit Assly. Crankcase LH [Model BS IV onward]
36DT0080 · MY 2018 · ₹4,955
Kit Crankcase LH
36JF0172 · MY 2019 · ₹3,611
Sensor Assembly Pick Up [For Single Spark (JF36)]
JF351804 · MY 2023 · ₹482
