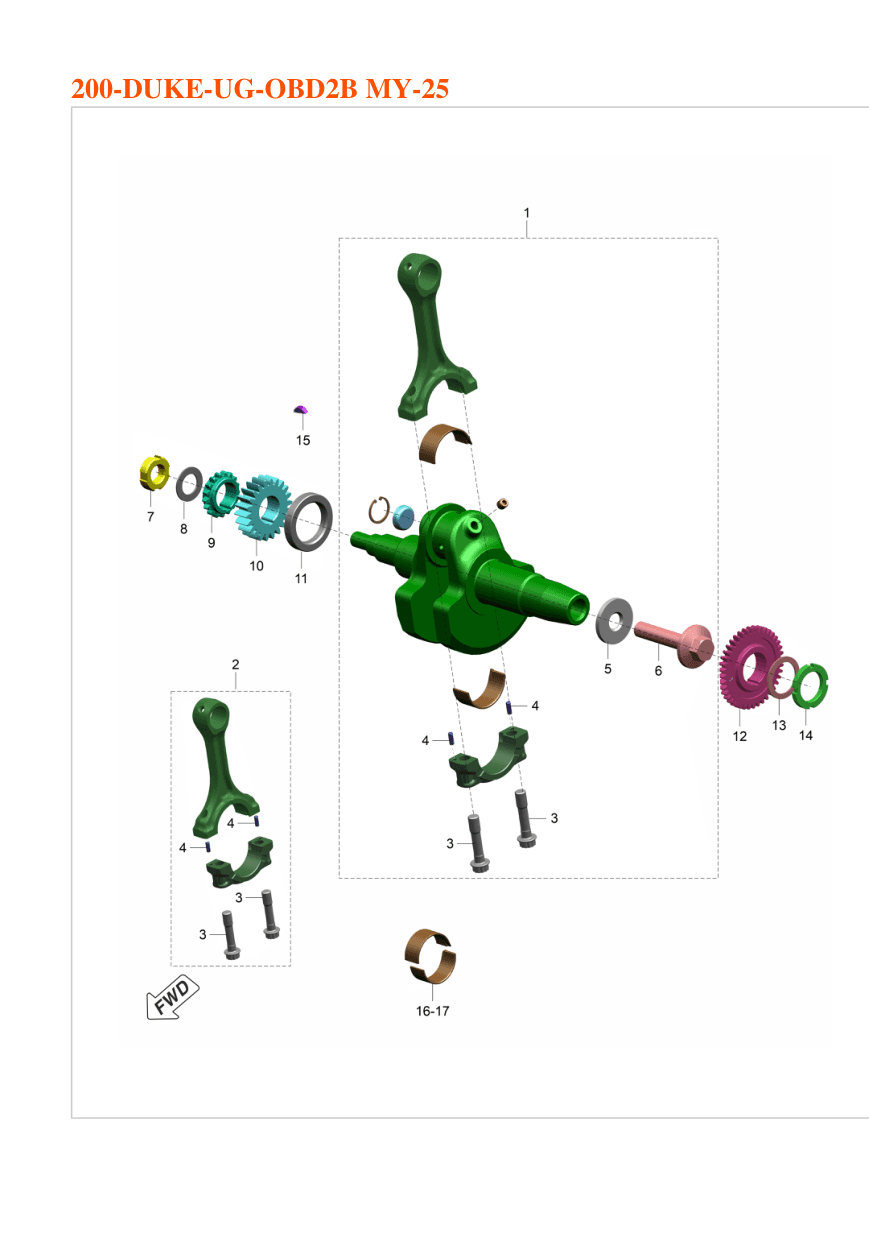

CRANKSHAFT Spare Parts — Genuine OEM

1

Assembly crankshaft

DH102220 · MY 2019 · ₹4,255

DH1022202019₹4,255

2

Crankshaft Assembly

JE531040 · MY 2017, 2019 · ₹3,207

JE5310402017, 2019₹3,207

3

Crankshaft Assembly

PF531011 · MY 2017, 2018 · ₹2,834

PF5310112017, 2018₹2,834

4

Crankshaft Assembly

JB531023 · MY 2018, 2019 · ₹2,845

JB5310232018, 2019₹2,845

5

Crankshaft Assembly

JE531054 · MY 2023 · ₹2,866

JE5310542023₹2,866

6

Crankshaft assly. comp.

JC101001 · MY 2018 · ₹4,261

JC1010012018₹4,261

7

Crankshaft assly. comp.

DK101065 · MY 2018 · ₹4,305

DK1010652018₹4,305

8

Crankshaft assly. comp.

JM101008 · MY 2018 · ₹3,890

JM1010082018₹3,890

9

Kit Crank Shaft Assembly [Refer Kit List]

36JU0036 · MY 2017, 2018 · ₹4,213

36JU00362017, 2018₹4,213

10

Bearing - Ball 28 X 68 X 18

39193120 · MY 2017, 2018, 2019 · ₹393

391931202017, 2018, 2019₹393

11

Bearing Ball

39256120 · MY 2017, 2019, 2023 · ₹234

392561202017, 2019, 2023₹234

12

Bolt

DH101396 · MY 2018, 2019 · ₹18

DH1013962018, 2019₹18

13

Bolt

39218304 · MY 2018

392183042018—

14

Nut Flange

59150014 · MY 2017, 2018, 2019, 2023 · ₹18.4

591500142017, 2018, 2019, 2023₹18.4

15

Bearing Ball

JE531001 · MY 2019 · ₹266

JE5310012019₹266

16

Key-Woodruff

KFAB4050 · MY 2023 · ₹7.8

KFAB40502023₹7.8

17

Kit Pr Drive & Driven Gear [Refer Page No. 107]

36JL0005 · MY 2017, 2018

36JL00052017, 2018—

18

Plain washer

39216511 · MY 2017, 2018, 2019 · ₹16.2

392165112017, 2018, 2019₹16.2

19

Rotor assembly W/O clutch

JE351036 · MY 2019

JE3510362019—

20

Washer Belleville

59120003 · MY 2017, 2018, 2019 · ₹6.4

591200032017, 2018, 2019₹6.4

21

Key woodruff

31101173 · MY 2017, 2018, 2019 · ₹6.2

311011732017, 2018, 2019₹6.2

22

Sprocket Crankshaft

JE531033 · MY 2017, 2019, 2023 · ₹112

JE5310332017, 2019, 2023₹112

23

Washer

59110008 · MY 2017, 2018, 2019 · ₹8.2

591100082017, 2018, 2019₹8.2

24

Key Sunk

LFB00001 · MY 2017, 2019, 2023 · ₹14.4

LFB000012017, 2019, 2023₹14.4

25

Parallel key

DS101154 · MY 2017, 2018, 2019 · ₹5.8

DS1011542017, 2018, 2019₹5.8

26

Pin - Parallel

39220307 · MY 2017, 2018, 2019 · ₹2.1

392203072017, 2018, 2019₹2.1

27

Pin(C/S Plunger)

JA531015 · MY 2017, 2018, 2019 · ₹3.5

JA5310152017, 2018, 2019₹3.5

28

Balancer Drive Gear

JE551213 · MY 2017, 2019, 2023 · ₹280

JE5512132017, 2019, 2023₹280

29

Kit centrifugal oil filter [Refer Kit List]

36DH4019 · MY 2018, 2019 · ₹38

36DH40192018, 2019₹38

30

Kit centrifugal over screw oil filter [Refer Page No. 106]

36DK0007 · MY 2018 · ₹34

36DK00072018₹34

31

Sprocket cam drive (16 T)

PD531029 · MY 2018, 2019 · ₹131

PD5310292018, 2019₹131

32

Washer Plain

LDA00025 · MY 2017, 2019, 2023 · ₹13.8

LDA000252017, 2019, 2023₹13.8

33

Nut Sprocket Drive Lock

LCD00001 · MY 2017, 2018, 2019, 2023 · ₹23

LCD000012017, 2018, 2019, 2023₹23

34

Spring

JA531012 · MY 2017, 2018, 2019 · ₹1.5

JA5310122017, 2018, 2019₹1.5

35

Sprocket Crankshaft

JG531027 · MY 2017, 2018 · ₹114

JG5310272017, 2018₹114

36

Kit Gear Primary Drive & Driven [Refer Page No. 106]

36DK0038 · MY 2018, 2019 · ₹1,617

36DK00382018, 2019₹1,617

37

Plunger Oil Crankshaft

JB531021 · MY 2017, 2018, 2019 · ₹22

JB5310212017, 2018, 2019₹22

38

Spacer Crankshaft

JG531031 · MY 2017, 2018 · ₹43

JG5310312017, 2018₹43

39

Assembly Gear Starter Clutch

JE621404 · MY 2017, 2019 · ₹567

JE6214042017, 2019₹567

40

Body centrifugal oil filter

DH101064 · MY 2018, 2019 · ₹186

DH1010642018, 2019₹186

41

Assembly Rotor With Clutch

JE351018 · MY 2017, 2019 · ₹2,249

JE3510182017, 2019₹2,249

42

Nut primary drive

DH101195 · MY 2018, 2019 · ₹24

DH1011952018, 2019₹24

43

Spacer crank shaft [5 Speed]

JD531004 · MY 2019 · ₹28

JD5310042019₹28

44

Balancer Drive Gear

JG531041 · MY 2017, 2018 · ₹418

JG5310412017, 2018₹418

45

Cover centrifugal oil filter

DH101065 · MY 2018, 2019 · ₹49

DH1010652018, 2019₹49

46

Belleville Washer

JG531039 · MY 2017, 2018 · ₹11.8

JG5310392017, 2018₹11.8

47

Kit Primary Drive And Driven

36JF0133 · MY 2017, 2019 · ₹1,037

36JF01332017, 2019₹1,037

48

Sprocket Camshaft Drive

DK101248 · MY 2018

DK1012482018—

49

Bearing needle

JE621411 · MY 2019 · ₹188

JE6214112019₹188

50

Cover comp centrifgal oil filter

DH101355 · MY 2018, 2019 · ₹84

DH1013552018, 2019₹84

51

Nut Balancer Drive Lock

JG531040 · MY 2017, 2018 · ₹57

JG5310402017, 2018₹57

52

Pin snap

39219908 · MY 2019 · ₹1.4

392199082019₹1.4

53

Spring oil delivery B

DH101067 · MY 2019 · ₹1.6

DH1010672019₹1.6

54

Joint oil delivery B

DH101066 · MY 2019 · ₹16

DH1010662019₹16

55

Screw CSK RD Cross - M5

DH101640 · MY 2019 · ₹1.84

DH1016402019₹1.84

56

(ES)

MY 2017

2017—

57

(ES)

MY 2018

2018—

58

(Primary Drive Gear)

MY 2018

2018—

59

(Primary Drive Gear)

MY 2017

2017—

60

(Primary Drive Gear)

MY 2017

2017—

61

(Primary Drive Gear)

MY 2018

2018—

62

01 Bearing Ball

2AJE5310 · MY 2017, 2018

2AJE53102017, 2018—

63

25 Washer plain - ID 14.5 [5 Speed]

5ALDA000 · MY 2019

5ALDA0002019—

64

Assembly rotor with clutch

JE351035 · MY 2019 · ₹1,800

JE3510352019₹1,800

65

Belleville Washer

LDH00002 · MY 2017, 2018 · ₹12.8

LDH000022017, 2018₹12.8

66

Crankshaft Assembly

JE531052 · MY 2019 · ₹3,461

JE5310522019₹3,461

67

Crankshaft assembly [5 Speed]

PF531039 · MY 2019 · ₹2,832

PF5310392019₹2,832

68

Drum

MY 2019

2019—

69

Gear assembly starter clutch

JE621409 · MY 2019 · ₹698

JE6214092019₹698

70

Washer - Plain [Refer Cir. D-58]

LDB00010 · MY 2017, 2018 · ₹19.4

LDB000102017, 2018₹19.4
