HomeSTAND ASSEMBLY

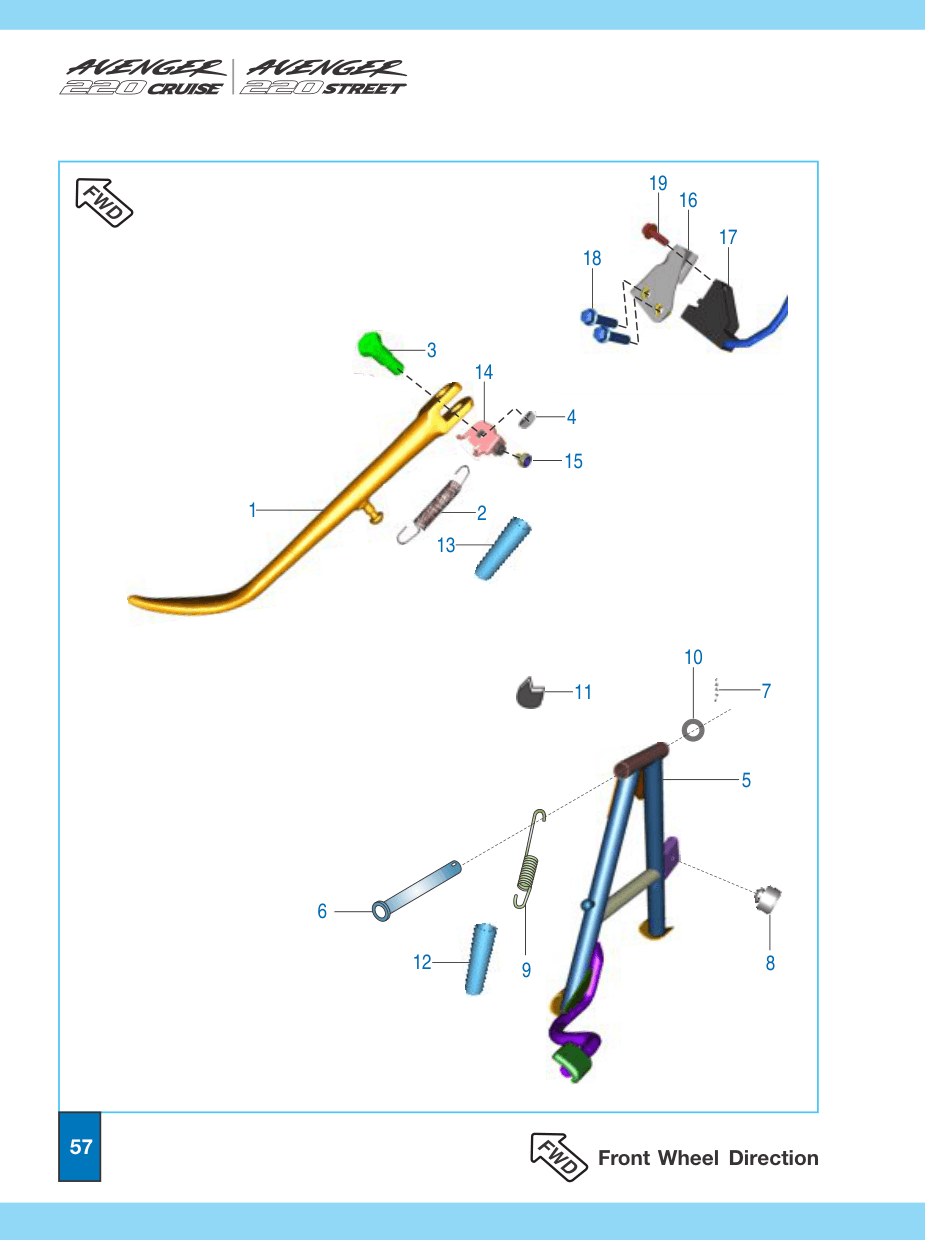

STAND ASSEMBLY

Genuine STAND ASSEMBLY spare parts, catalogued by part number for an exact fit.

50 parts available

Filter by make year

All years 2017 2018 2020 2023

#PartPart No.Make YearsPrice

1
Center Stand
JF113202 · MY 2017, 2023 · ₹852
JF1132022017, 2023₹852
2
Kit Center Stand
36JL0025 · MY 2020 · ₹922
36JL00252020₹922
3
Side Stand
DV161017 · MY 2018
DV1610172018—
4
Stand Center
PF113203 · MY 2017 · ₹618
PF1132032017₹618
5
Damper
DG161124 · MY 2017, 2018, 2020, 2023 · ₹13.6
DG1611242017, 2018, 2020, 2023₹13.6
6
Spring
DG161219 · MY 2018 · ₹21
DG1612192018₹21
7
Stand Side
JA113202 · MY 2017 · ₹162
JA1132022017₹162
8
Bolt
DG161129 · MY 2018 · ₹20
DG1611292018₹20
9
Bush Main Stand LH
JL113210 · MY 2017, 2020, 2023 · ₹30
JL1132102017, 2020, 2023₹30
10
Bolt Flange - M8 x L60
LAD00134 · MY 2017, 2020, 2023 · ₹17.6
LAD001342017, 2020, 2023₹17.6
11
Bolt Flanged
LAD00073 · MY 2017, 2023 · ₹7.2
LAD000732017, 2023₹7.2
12
Lock Nut
DD161071 · MY 2018 · ₹12.8
DD1610712018₹12.8
13
Shaft Center Stand
30161157 · MY 2017 · ₹40
301611572017₹40
14
Bolt Flange - M8 x 1.25 x L70
LAD00135 · MY 2017, 2020, 2023 · ₹19.6
LAD001352017, 2020, 2023₹19.6
15
Bolt Flanged
KADb0516 · MY 2017
KADb05162017—
16
Bolt Flanged
KADF0812 · MY 2020 · ₹5.02
KADF08122020₹5.02
17
Spring M-Stand
DH161121 · MY 2017 · ₹33
DH1611212017₹33
18
Stand Centre
DV161033 · MY 2018 · ₹660
DV1610332018₹660
19
Pin - Cotter
KHAA3235 · MY 2017, 2018 · ₹1.26
KHAA32352017, 2018₹1.26
20
Shaft Stand
DG161230 · MY 2018 · ₹67
DG1612302018₹67
21
Spring Main Stand
JL113207 · MY 2017, 2020, 2023 · ₹39.2
JL1132072017, 2020, 2023₹39.2
22
Bolt For Side Stand Mtg.
DF161102 · MY 2017, 2020, 2023 · ₹15.6
DF1611022017, 2020, 2023₹15.6
23
Cover Spring Main Stand
JL113212 · MY 2017, 2020, 2023 · ₹14
JL1132122017, 2020, 2023₹14
24
Pin Cotter
39079708 · MY 2018 · ₹1.16
390797082018₹1.16
25
Assembly Side Stand
JL113201 · MY 2017, 2020, 2023 · ₹213
JL1132012017, 2020, 2023₹213
26
Spring Side Stand
DH161066 · MY 2017 · ₹24
DH1610662017₹24
27
Nut - Nyloc
39042215 · MY 2017 · ₹5.44
390422152017₹5.44
28
Side Stand Switch
JL401402 · MY 2017, 2023 · ₹144
JL4014022017, 2023₹144
29
Spring
DV161060 · MY 2018 · ₹26
DV1610602018₹26
30
Nut nyloc - M10 x 1.25
LCH00001 · MY 2020, 2023 · ₹5.45
LCH000012020, 2023₹5.45
31
Plain washer
39242311 · MY 2018 · ₹1.7
392423112018₹1.7
32
Side Stand Switch
JF401405 · MY 2020 · ₹260
JF4014052020₹260
33
Damper Side Stand
DG161276 · MY 2018 · ₹22
DG1612762018₹22
34
Bolt flange
KADS0516 · MY 2020, 2023 · ₹1.96
KADS05162020, 2023₹1.96
35
Cover spring M-stand [UG]
DH161145 · MY 2018 · ₹5.8
DH1611452018₹5.8
36
Cover spring S-stand [UG]
DH161146 · MY 2017, 2018, 2020, 2023 · ₹4.4
DH1611462017, 2018, 2020, 2023₹4.4
37
Magnet Holder
JL403600 · MY 2017, 2023 · ₹38
JL4036002017, 2023₹38
38
Magnet Holder
JZ403601 · MY 2020 · ₹105
JZ4036012020₹105
39
Spring Side Stand
JL113209 · MY 2017, 2020, 2023 · ₹23
JL1132092017, 2020, 2023₹23
40
Bracket Side Stand Mtg
52JL0072 · MY 2017, 2023 · ₹304
52JL00722017, 2023₹304
41
Bracket Side Stand Mtg
JL113202 · MY 2020
JL1132022020—
42
Cover Switch Stand Side
JL113818 · MY 2020, 2023 · ₹35
JL1138182020, 2023₹35
43
Spring Main Stand With Cover
JL113206 · MY 2020, 2023 · ₹56
JL1132062020, 2023₹56
44
Washer Plain
KDBA0818 · MY 2023 · ₹1.35
KDBA08182023₹1.35
45
(ES)
MY 2017
2017—
46
05 Side Stand Switch
9AJF4014 · MY 2023
9AJF40142023—
47
06 Stand Center [Comfortec (June 16)]
1APF1132 · MY 2017
1APF11322017—
48
13A JZ 4036 01 Magnet Holder
MY 2023
2023—
49
Spring Main Stand [BS IV]
JZ113209 · MY 2017 · ₹55
JZ1132092017₹55
50
Stand center [UG]
PD113207 · MY 2018 · ₹618
PD1132072018₹618
